STANDARD LIFTERS, LLC
"Lifting the bar for the
Tooling Industry"

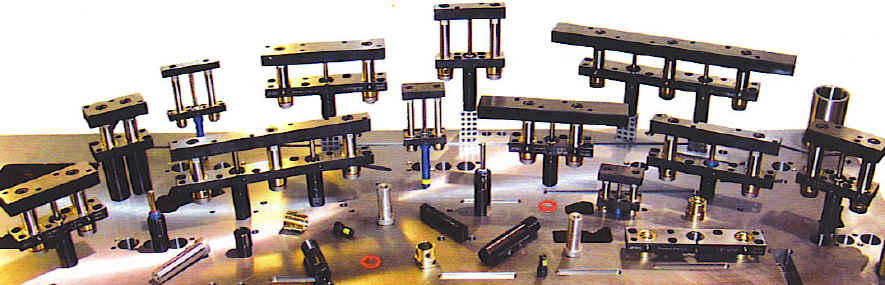

This simple, durable design performs effectively and reliably in complex die
lift applications. When these modular, self-contained lifters are incorporated
into your die, the provide cost savings by reducing design, building and
production costs.
|
Advantages
of Standard Lifters |
For the Designer:
- Less design time
- Small footprint
- Ultimate flexibility
- Selectable feed heights
- Fully Detailed
- Can be Catalogued
- Design templates available
- Durable construction
|
For the Die Shop:
- Shortens build time
- Reduces labour
- Retrofit easily for die repair
- More reliable during tryouts
- Fully adjustable, flexible
- Easy access
- Quick removal
- See-through design
|
For the Stamper:
- Easy Nitrogen cylinder change-out
means less down time
- Fully adjustable lift system
- Replaceable components
- Tool-room stockable
- Simple repair
- Virtually maintenance-free
|
|

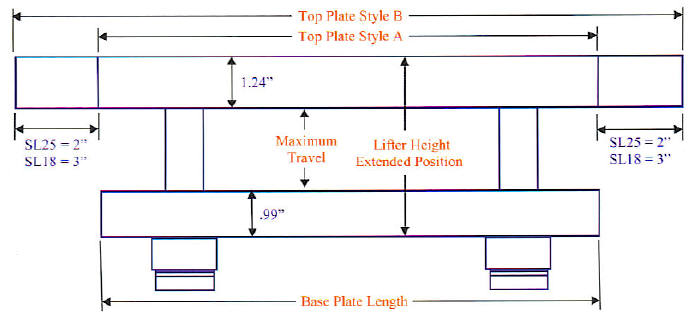

Standard Lifter Basic Models -
General Information |
SL18 series
- 3 base lengths available
(7",12",18"), 1.87" wide
- Top plates are 1.5" wide and can
be ordered in 3 styles:
A: same length as lifter base
B: as for A but 3" added to each end
C: custom length and location above base
- Lifter height from 2.375" to
7.125", in 0.125" increments (specified as extended position)
- Top plate is machinable 4140
steel
|
SL25 series
- 4 base lengths available
(6.75",8",12",18"), 2.5"wide
- Top plates can be ordered in 3
styles:
A: same length and width as lifter base,
B: same length and width as lifter base, with 2" added to each end,
C: custom length, width and location above base.
- Lifter height from 2.375" to
7.125", in 0.125" increments (specified as extended position)
- Top plate is machinable 4140
steel
|
`

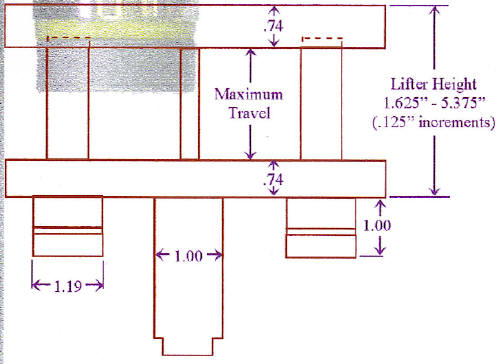

| NEW!! The
SM12 and SM20 "Mini-Slifter" |
Smaller to accommodate
tighter lift applications
- Base plate 4"x2" (SM12) or 5.37"
x 1.25" (SM20)
- Top plate available in customised
length and width
- Up to 100mm travel
- Comes standard with self-lubed
bushing
- Lifter height 1.625" to 5.375" in
0.125" increments
- Customised length and width top
plates available
|
 |
